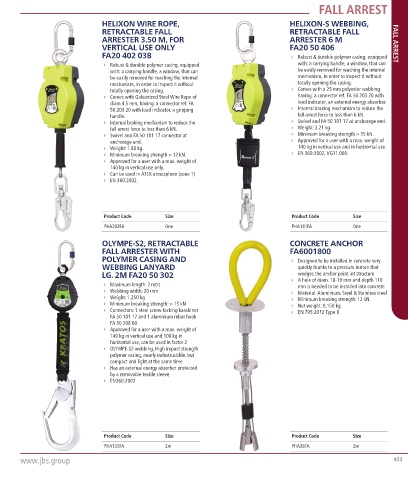

Page 435 - JBS_Core_Catalogue_2024_V1

FALL ARREST

HELIXON WIRE ROPE, HELIXON-S WEBBING,
RETRACTABLE FALL RETRACTABLE FALL
ARRESTER 3.50 M, FOR ARRESTER 6 M
VERTICAL USE ONLY FA20 50 406 FALL ARREST
FA20 402 03B  Robust & durable polymer casing, equipped
 Robust & durable polymer casing, equipped with: a carrying handle, a window, that can
with: a carrying handle, a window, that can be easily removed for reaching the internal
be easily removed for reaching the internal mechanism, in order to inspect it without
mechanism, in order to inspect it without totally opening the casing.
totally opening the casing.  Comes with a 25 mm polyester webbing
 Comes with Galvanized Steel Wire Rope of having: a connector ref. FA 50 203 20 with
diam 4.5 mm, having: a connector ref. FA load indicator, an external energy absorber.
50 203 20 with load indicator, a gripping  Internal braking mechanism to reduce the
handle. fall arrest force to less than 6 kN.
 Internal braking mechanism to reduce the  Swivel and FA 50 101 17 at anchorage end.
fall arrest force to less than 6 kN.  Weight: 3.21 kg.
 Swivel and FA 50 101 17 connector at  Minimum breaking strength > 15 kN.
anchorage end.  Approved for a user with a max. weight of
 Weight: 1.88 kg. 140 kg in vertical use and in horizontal use.
 Minimum breaking strength > 12 kN.  EN 360:2002, VG11.060.
 Approved for a user with a max. weight of
140 kg in vertical use only.
 Can be used in ATEX atmosphere (zone 1)
 EN 360:2002.

Product Code Size Product Code Size
PHA202FA One PHA141FA One

OLYMPE-S2, RETRACTABLE CONCRETE ANCHOR
FALL ARRESTER WITH FA6001800
POLYMER CASING AND  Designed to be installed in concrete very
WEBBING LANYARD quickly thanks to a pressure button that
LG. 2M FA20 50 302 wedges the anchor point int structure
 A hole of diam. 18-19 mm and depth 110
 Maximum length: 2 mtrs mm is needed to be installed into concrete
 Webbing width: 20 mm  Material: Aluminium, Steel & Stainless steel
 Weight: 1.250 kg  Minimum breaking strength: 12 kN
 Minimum breaking strength: > 15 kN  Net weight: 0,150 kg
 Connectors: 1 steel screw-locking karabiner  EN 795:2012 Type B
FA 50 101 17 and 1 aluminium rebar hook
FA 50 208 60
 Approved for a user with a max. weight of
140 kg in vertical use and 100 kg in
horizontal use, can be used in factor 2
 OLYMPE-S2 webbing, High impact strength
polymer casing, nearly indestructible, but
compact and light at the same time
 Has an external energy absorber protected
by a removable textile sleeve
 EN360:2002

Product Code Size Product Code Size
PHA135FA 2m PHA38FA 2m
